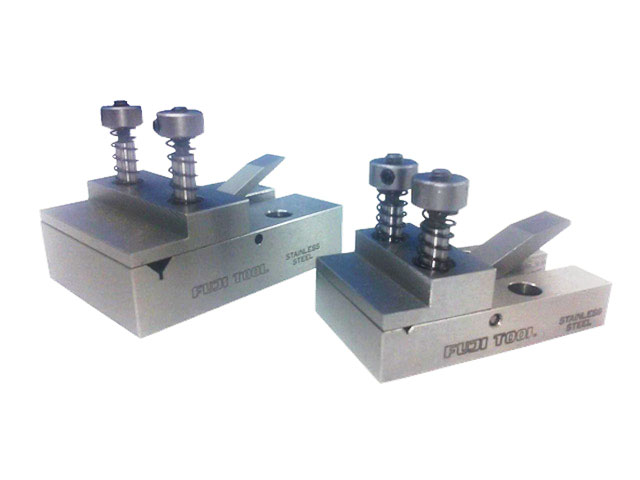

Miniature Precision Clamp
Measuring Clip be used to hold item on the table to
facilitate measurements by Coordinate Measuring Machine.
Projector, Microscope, etc. Work piece holding force
can be easily adjusted by operating the springs.
Body is machined to within precise tolerance for flatness and square ness.
Material : Stainless Steel
Flatness : ±0.01 mm.
Square ness : 0.015 mm.
Specification
| Code No. | Model No. | Width | Length | Capacity (Max Diameter Ø) | Weight |
| 08-203 | MC-300S | 30 mm. | 55 mm. | 10 mm. (Ø11) | 150g |
| 08-204 | MC-450S | 45 mm. | 63 mm. | 16 mm. (Ø16) | 400g |
Dimension of V-groove
MC300S(Left) : MC450S(Right)
Example of use in reversed position (with Maximum clamp width)
Example of the use on a vision measuring machine
